ReadyLIFT: SST Lift Kit Pre-Load Spacer – 3” Front / 2” Rear For `05-`20 Toyota Tacoma TRD

This SST (Smart Suspension Tech) Premium Lift Kit Pre-Load Spacer is specifically engineered for 2005-2020 Toyota Tacoma 6-lug 2WD/4WD trucks. It utilizes pre-load style lift engineering that maintains factory alignment geometry. This kit utilizes a precision-crafted, CNC-machined billet aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases the front-lift spring rate, reducing nose dive during braking and improving front roll during hard turning at speed. Thanks to the pre-load spacer, this kit enhances the factory driving mannerisms with a slightly firmer ride. It also increases ground clearance, which allows for larger off-road wheels and tires. This kit includes 1-inch differential drop spacers and hardware, sway-bar drop spacers, and skid-plate spacers. The legendary, OE-style, cast-iron, rear lift blocks with proper taper and longer U-bolts are also included for the rear. Installation is easy with the bolt-on design and no permanent modifications are required.


  • Application specific for `05-`20 Toyota Tacoma 6-lug 2WD/4WD trucks

  • Provides 3” total lift in front & 2” lift in rear

  • Allows for up to a 285/65-18 tire on an 18×9 wheel with +18 mm offset (Minor trimming may be required depending on tire brand and tread design)

  • Utilizes pre-load style lift engineering that maintains factory alignment geometry

  • Increases front spring rate

  • Better nose dive control during braking

  • Helps eliminate nose side roll during hard turning

  • Rear lift blocks feature longer U-bolts

  • Easy, bolt-on installation

  • No permanent modifications are required

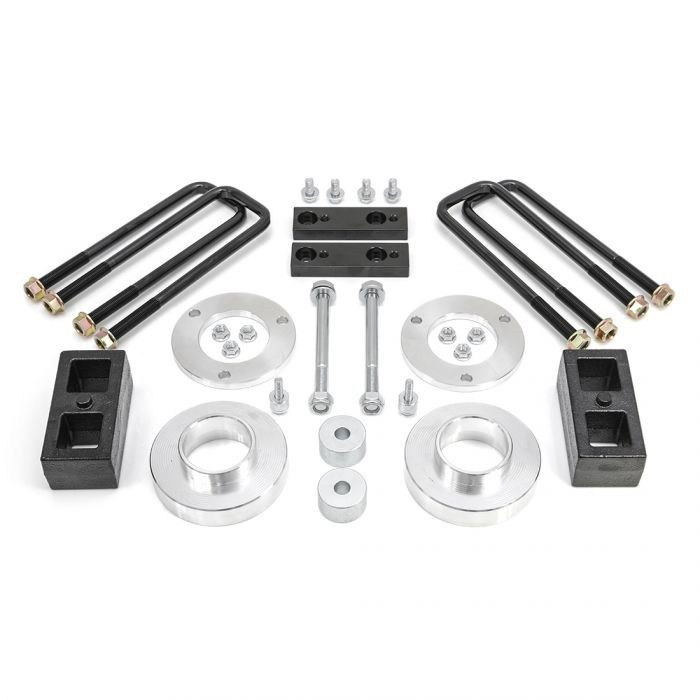

  • Includes: front pre-load lift assembly, front sway-bar drop spacers, rear lift blocks, & skid-plate spacers
